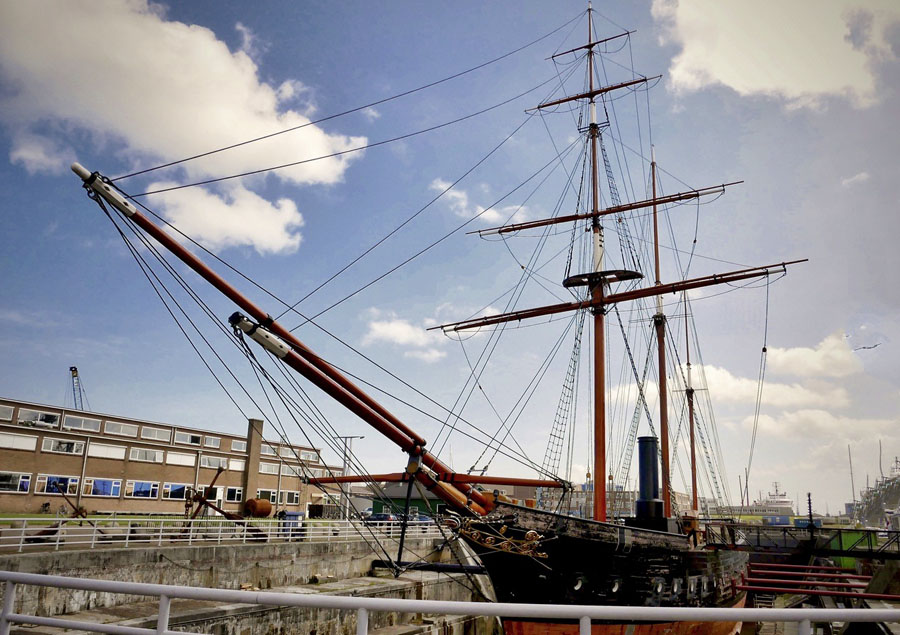

Marine Marine Design was asked by the Bonaire Foundation to create design drawings for the reconstruction of the rigging of the ZrMsBonaireMarine Marine Design was asked by Stiching Bonaire to create design drawings for the reconstruction of the rigging of the ZrMsBonaire - image2Marine Marine Design new rigging plans for the ZrMsBonaire - image1Marine Marine Design new rigging plans for the ZrMsBonaire - image2Marine Marine Design new rigging plans for the ZrMsBonaire - image3Marine Marine Design new rigging plans for the ZrMsBonaire - image4Reconstruction of the rigging of the ZrMsBonaire according to the plans from Manta Marine Design



 PROJECT INFORMATION

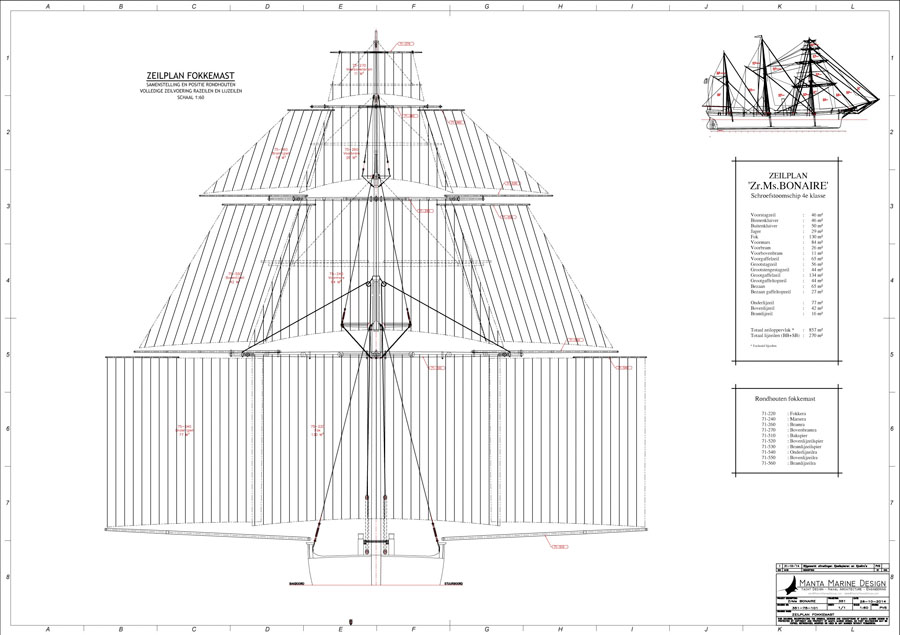

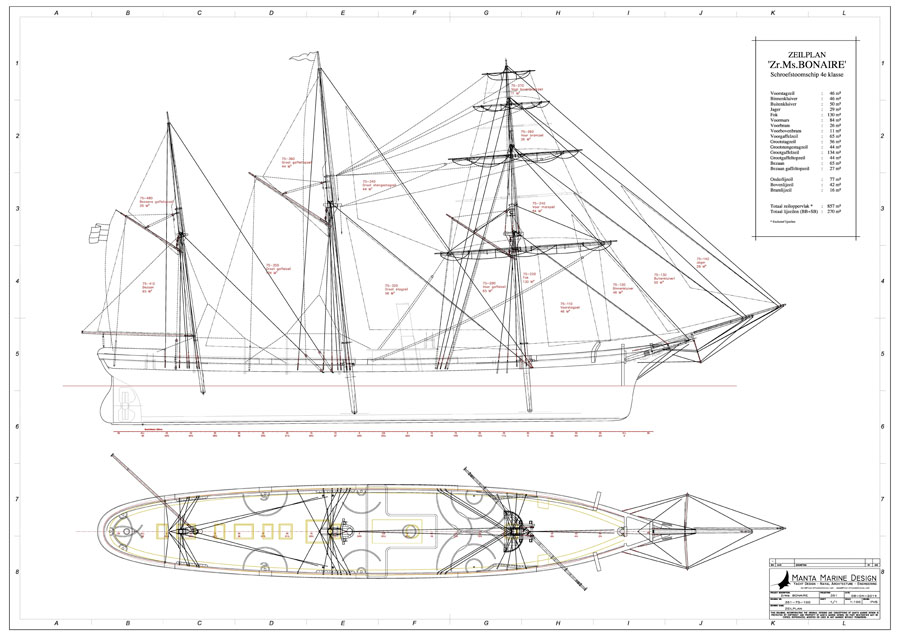

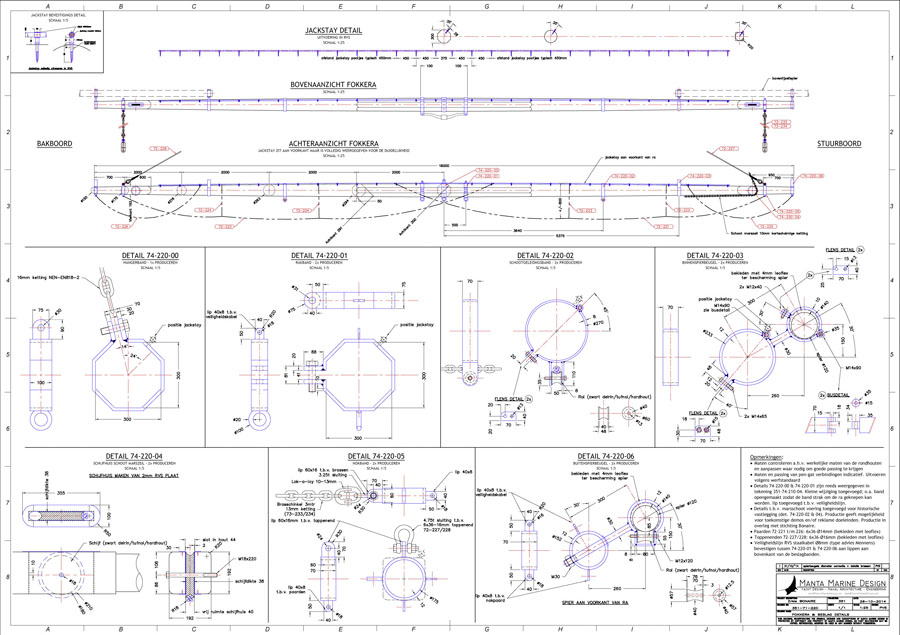

Workscope : Consultancy Rig Reconstruction & new workshop drawings for spars and hardware based on the old plans. We went through the old drawings and plans of the vessel and created a new set of design drawings for practically the whole rigging while trying to keep it as original as practically possible. Based on these drawings.
By order of : Stichting Bonaire (Bonaire Foundation)
Partners : SRF (Scheepsreparatie Friesland) made all the spars and hardwareMennens assembled and placed the rig on the vessel.
Shipyard : Feijenoord, Rotterdam, The Netherlands
Aerial Photo : Helderse Courant (newspaper)

  Vessel Information
Length : 65.80 meter  (215' 11")
Beam : 8.80 meter (28' 10")
Material hull : Composite; Steel structure and frames, Wooden planking and finish

ZrMs Bonaire - Some History

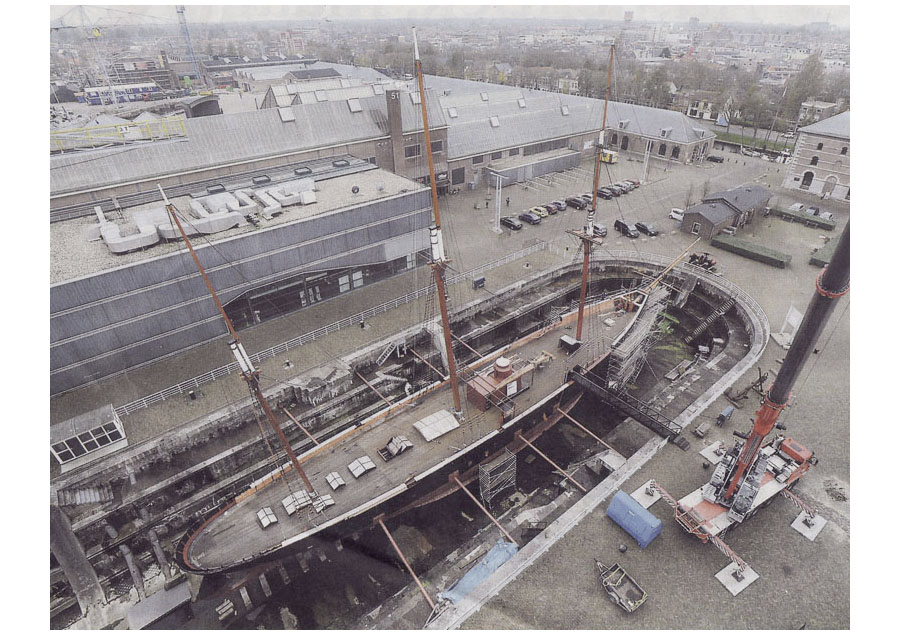

ZrMs Schroefschip Bonaire was built in 1877 and served for the the Dutch navy until the year 1902. An interesting time when the transition started from sailing ships to motorised steam ships. After that the ship was mainly used as an accomodation ship for cadets. Since 1996 the Bonaire is lying in a antique drydock in Den Helder, the dutch navy harbour, waiting for restauration which has started a while ago. Soon the ship will be revived in her original state as a museum ship for display however will stay in the drydock. For more information please visit the website of the Bonaire foundation. www.stichtingbonaire.nl

ZrMs Schroefschip Bonaire is gebouwd in 1877 en heeft voor de Nederlandse Marine gediend tot het jaar 1902. Een interessante tijd toen de transitie van zeilschepen naar gemotoriseerde stoomschepen startte. Daarna is het schip voornamelijk gebruikt als accommodatie voor kadetten. Since 1996 ligt de Bonaire in het antieke droogdok in Den Helder, de Nederlandse Marine Haven. Na de restauratie blijft het schip hier liggen als museumschip voor het publiek. Voor meer informatie kunt u de website van de Stichting Bonaire bezoeken. www.stichtingbonaire.nl
